| MOQ: | 300KG |
| Price: | It depends |
| Standard Packaging: | Carton |
| Delivery Period: | 3-5 Work days |
| Payment Method: | Cash on payments |
| Supply Capacity: | Delivery 10-15 Days after Next Order |

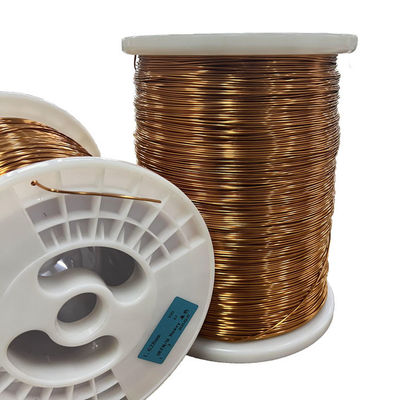

The Enamelled Round Copper Wire is a high-quality product that offers exceptional performance and reliability. With a warranty of 3 years, you can trust in the durability and longevity of this wire for your various applications.
Featuring a voltage rating of up to 2800V, this wire is suitable for a wide range of electrical projects, providing efficient power transmission and insulation. The Enamelled Round Copper Wire is designed to meet your needs for high voltage applications, ensuring safety and reliability.
This product holds certifications from reputable organizations such as UL, RoHS, and REACH, guaranteeing compliance with industry standards and regulations. You can have peace of mind knowing that the Enamelled Round Copper Wire meets stringent quality and environmental requirements.
The coating of this wire is made of Polyamideimide composite polyester, offering excellent protection and insulation. This coating enhances the wire's durability and performance, making it ideal for demanding applications where reliability is crucial.
Whether you are working with copper coated steel wire, copper alloy welding wire, or using a copper wire tinning machine, the Enamelled Round Copper Wire is a versatile and reliable choice. Its high-quality construction ensures optimal performance in various situations, making it a valuable addition to your electrical toolkit.
Invest in the Enamelled Round Copper Wire for your projects that require a durable, high-quality wire solution. With its impressive warranty, voltage rating, certifications, and superior coating, this wire is designed to meet your needs for efficiency, reliability, and performance.
The Enamelled Round Copper Wire from PEWSC (Model: UEFN/ Heavy) is a versatile product suitable for various application occasions and scenarios due to its high quality and reliable performance. Originating from China, this wire is certified by UL, ensuring its compliance with international standards.
One of the key application scenarios for this product is in the manufacturing of Copper Clad Wire. The Enamelled Round Copper Wire provides excellent conductivity and durability, making it ideal for this purpose. Additionally, it is also commonly used in the production of Copper Clad Steel Wire, where its high-quality material and insulation properties are highly valued.
Another important application occasion for this wire is in the field of welding, specifically for Copper Alloy Welding Wire. The Enamelled Round Copper Wire's Polyamideimide Composite Polyester coating enhances its performance and ensures a reliable welding process. Its certification by UL, RoHS, and REACH further solidifies its suitability for such applications.
Customers looking to purchase the Enamelled Round Copper Wire can place a minimum order quantity of 300KG, with the price depending on the order specifications. The wire is packaged in cartons for easy transportation and has a delivery time of 3-5 work days. Payment terms include cash on payments, providing convenience to buyers.
PEWSC ensures a supply ability that guarantees delivery 10-15 days after the next order is placed, allowing for efficient restocking and production processes. The wire is made of UEFN material and features excellent insulation with enamel material, adding to its durability and performance.
Product Customization Services for Enamelled Round Copper Wire:
Brand Name: PEWSC
Model Number: UEFN/ Heavy
Place of Origin: China
Certification: UL
Minimum Order Quantity: 300KG
Price: It depends
Packaging Details: Carton
Delivery Time: 3-5 Work days
Payment Terms: Cash on payments
Supply Ability: Delivery 10-15 Days after Next Order
Temperature Grade: 155℃
Advantage: High Breakdown Voltage
Material: UEFN
Certifications: UL, RoHS, REACH
Coating: Polyamideimide Composite Polyester
Product Packaging:
The Enamelled Round Copper Wire is carefully packaged in a sturdy cardboard box to ensure its safety during transit. Each spool of wire is securely wrapped in bubble wrap to prevent any damage or tangling during shipping.
Shipping:
We offer fast and reliable shipping services for the Enamelled Round Copper Wire product. Orders are processed promptly and shipped out within 1-2 business days. Customers can choose from various shipping options to suit their needs, including standard shipping and expedited shipping for urgent orders.
| NEMA---Heavy | Unit﹕mm | ||||||||||||||||||||
| AWG | Diameter of Conduct |
Conductor Control Benchmarks |
OD Control Benchmarks |
Specification Boundaries | Conductor Resistance 20℃ (Ω/KM) |
Insulation breakdownvoltage (v) |
Min Elongation (%) |
Max. Springiness (°) |
Resistance to abrasion |
||||||||||||
| Lower Limit |
Upper Limit |
Lower Limit |
Median | Upper Limit |
Min. Increase in Diameter |
Max. Finished overall Diameter |
Average | Minimum | |||||||||||||
| 44 | 0.051 | +0.002 | 0.050 | 0.052 | 0.062 | 0.064 | 0.066 | 0.010 | 0.066 | 9527.95 | 1300 | 14 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 43 | 0.056 | +0.002 | 0.055 | 0.057 | 0.068 | 0.070 | 0.072 | 0.010 | 0.074 | 7815.03 | 1400 | 15 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 42 | 0.064 | +0.002 | 0.063 | 0.065 | 0.079 | 0.081 | 0.083 | 0.013 | 0.084 | 5899.6 | 1675 | 16 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 41 | 0.071 | +0.003 | 0.070 | 0.072 | 0.086 | 0.088 | 0.090 | 0.013 | 0.094 | 4610.88 | 1675 | 17 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 40 | 0.079 | +0.002 | 0.078 | 0.080 | 0.094 | 0.096 | 0.098 | 0.013 | 0.104 | 3800.62 | 1800 | 17 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 39 | 0.089 | +0.002 | 0.088 | 0.090 | 0.106 | 0.109 | 0.112 | 0.015 | 0.114 | 2968.15 | 1975 | 18 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 38 | 0.102 | +0.002 | 0.101 | 0.103 | 0.122 | 0.125 | 0.128 | 0.018 | 0.130 | 2239.81 | 2150 | 19 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 37 | 0.114 | +0.003 | 0.113 | 0.115 | 0.134 | 0.137 | 0.140 | 0.018 | 0.145 | 1750.03 | 2325 | 20 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 36 | 0.127 | +0.003 | 0.126 | 0.128 | 0.149 | 0.152 | 0.155 | 0.020 | 0.160 | 1427.71 | 2525 | 20 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 35 | 0.142 | +0.003 | 0.141 | 0.143 | 0.167 | 0.170 | 0.173 | 0.023 | 0.178 | 1120.02 | 2750 | 21 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 34 | 0.16 | +0.003 | 0.159 | 0.161 | 0.185 | 0.188 | 0.191 | 0.023 | 0.198 | 890.6 | 2975 | 22 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 33 | 0.18 | +0.003 | 0.179 | 0.181 | 0.207 | 0.211 | 0.215 | 0.025 | 0.221 | 692.85 | 3250 | 23 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 32 | 0.203 | +0.003 | 0.202 | 0.205 | 0.233 | 0.237 | 0.241 | 0.028 | 0.246 | 543.36 | 3525 | 24 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 31 | 0.226 | +0.003 | 0.225 | 0.228 | 0.258 | 0.262 | 0.266 | 0.030 | 0.274 | 437.51 | 3825 | 24 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 30 | 0.254 | +0.002 | 0.252 | 0.256 | 0.289 | 0.293 | 0.297 | 0.033 | 0.307 | 348.45 | 4150 | 25 | 66 | 525 | 450 | ||||||
| -0.003 | |||||||||||||||||||||
| 29 | 0.287 | +0.003 | 0.285 | 0.289 | 0.328 | 0.332 | 0.336 | 0.038 | 0.338 | 272.17 | 4250 | 26 | 61 | 560 | 480 | ||||||
| -0.003 | |||||||||||||||||||||
| 28 | 0.32 | +0.003 | 0.318 | 0.322 | 0.364 | 0.368 | 0.372 | 0.041 | 0.373 | 217.08 | 4375 | 26 | 55 | 595 | 510 | ||||||
| -0.002 | |||||||||||||||||||||
| 27 | 0.361 | +0.002 | 0.358 | 0.363 | 0.404 | 0.409 | 0.414 | 0.041 | 0.419 | 171.28 | 4500 | 27 | 50 | 635 | 540 | ||||||
| -0.003 | |||||||||||||||||||||
| 26 | 0.404 | +0.002 | 0.401 | 0.406 | 0.449 | 0.454 | 0.459 | 0.043 | 0.462 | 137.89 | 4600 | 27 | 76 | 675 | 575 | ||||||
| -0.005 | |||||||||||||||||||||
| 25 | 0.455 | +0.002 | 0.452 | 0.457 | 0.503 | 0.508 | 0.513 | 0.046 | 0.516 | 108.41 | 4725 | 28 | 72 | 720 | 615 | ||||||
| -0.005 | |||||||||||||||||||||
| 24 | 0.511 | +0.002 | 0.507 | 0.513 | 0.561 | 0.566 | 0.571 | 0.048 | 0.577 | 86.08 | 4850 | 28 | 67 | 770 | 655 | ||||||
| -0.006 | |||||||||||||||||||||
| 23 | 0.574 | +0.003 | 0.570 | 0.576 | 0.627 | 0.632 | 0.637 | 0.051 | 0.643 | 67.80 | 5000 | 29 | 62 | 820 | 700 | ||||||
| -0.005 | |||||||||||||||||||||
| 22 | 0.643 | +0.002 | 0.639 | 0.645 | 0.698 | 0.703 | 0.708 | 0.053 | 0.714 | 54.44 | 5125 | 29 | 58 | 880 | 750 | ||||||
| -0.008 | |||||||||||||||||||||
| 21 | 0.724 | +0.002 | 0.720 | 0.726 | 0.782 | 0.788 | 0.794 | 0.056 | 0.800 | 42.82 | 5250 | 30 | 53 | 940 | 800 | ||||||
| -0.008 | |||||||||||||||||||||
| 20 | 0.813 | +0.005 | 0.808 | 0.816 | 0.877 | 0.883 | 0.889 | 0.061 | 0.892 | 33.88 | 5400 | 30 | 66 | 1000 | 850 | ||||||
| -0.008 | |||||||||||||||||||||
| 19 | 0.912 | +0.005 | 0.907 | 0.915 | 0.979 | 0.985 | 0.991 | 0.064 | 0.993 | 26.98 | 5550 | 31 | 62 | 1070 | 910 | ||||||
| -0.010 | |||||||||||||||||||||
| 18 | 1.024 | +0.005 | 1.019 | 1.027 | 1.093 | 1.099 | 1.105 | 0.066 | 1.110 | 21.39 | 5700 | 32 | 58 | 1150 | 980 | ||||||
| -0.011 | |||||||||||||||||||||
| 17 | 1.151 | +0.005 | 1.145 | 1.154 | 1.225 | 1.231 | 1.237 | 0.071 | 1.240 | 16.95 | 5850 | 32 | 54 | 1230 | 1045 | ||||||
| -0.013 | |||||||||||||||||||||
| 16 | 1.29 | +0.008 | 1.284 | 1.293 | 1.368 | 1.374 | 1.380 | 0.074 | 1.384 | 13.44 | 6000 | 33 | 50 | 1310 | 1115 | ||||||
| -0.012 | |||||||||||||||||||||
| 15 | 1.450 | +0.008 | 1.444 | 1.453 | 1.530 | 1.536 | 1.542 | 0.076 | 1.549 | 10.66 | 6175 | 33 | 46 | 1400 | 1190 | ||||||
| -0.015 | |||||||||||||||||||||
| 14 | 1.628 | +0.008 | 1.621 | 1.631 | 1.713 | 1.720 | 1.727 | 0.081 | 1.732 | 8.44 | 6325 | 33 | 42 | 1490 | 1270 | ||||||
| -0.015 | |||||||||||||||||||||
| 13 | 1.829 | +0.010 | 1.822 | 1.832 | 1.915 | 1.922 | 1.929 | 0.081 | 1.935 | 6.69 | 5600 | 34 | -- | 1490 | 1270 | ||||||
| -0.018 | |||||||||||||||||||||
| 12 | 2.052 | +0.010 | 2.044 | 2.056 | 2.138 | 2.146 | 2.154 | 0.081 | 2.162 | 5.32 | 5800 | 34 | -- | 1490 | 1270 | ||||||
| -0.02 | |||||||||||||||||||||
| 11 | 2.304 | +0.012 | 2.296 | 2.308 | 2.393 | 2.402 | 2.411 | 0.084 | 2.418 | 4.22 | 6000 | 35 | -- | 1490 | 1270 | ||||||
| -0.023 | |||||||||||||||||||||
| 10 | 2.588 | +0.013 | 2.580 | 2.592 | 2.682 | 2.690 | 2.698 | 0.086 | 2.703 | 3.34 | 6200 | 35 | -- | 1940 | 1270 | ||||||
| -0.025 | |||||||||||||||||||||
| 9 | 2.906 | +0.015 | 2.896 | 2.910 | 3.000 | 3.009 | 3.018 | 0.086 | 3.023 | 2.65 | 3200 | 36 | -- | -- | -- | ||||||
| -0.028 | |||||||||||||||||||||
| 8 | 3.264 | +0.018 | 3.254 | 3.268 | 3.361 | 3.370 | 3.378 | 0.089 | 3.383 | 2.1 | 3300 | 36 | -- | -- | -- | ||||||
| -0.033 | |||||||||||||||||||||
| The above single wear resistance values apply to MW-5C 35C 81C 30C 75C 79C 80C 76C 28C 24C. The voltage resistance applies to MW-5C 35C 81C 30C 75C 79C 26C 77C. | |||||||||||||||||||||
|
|
